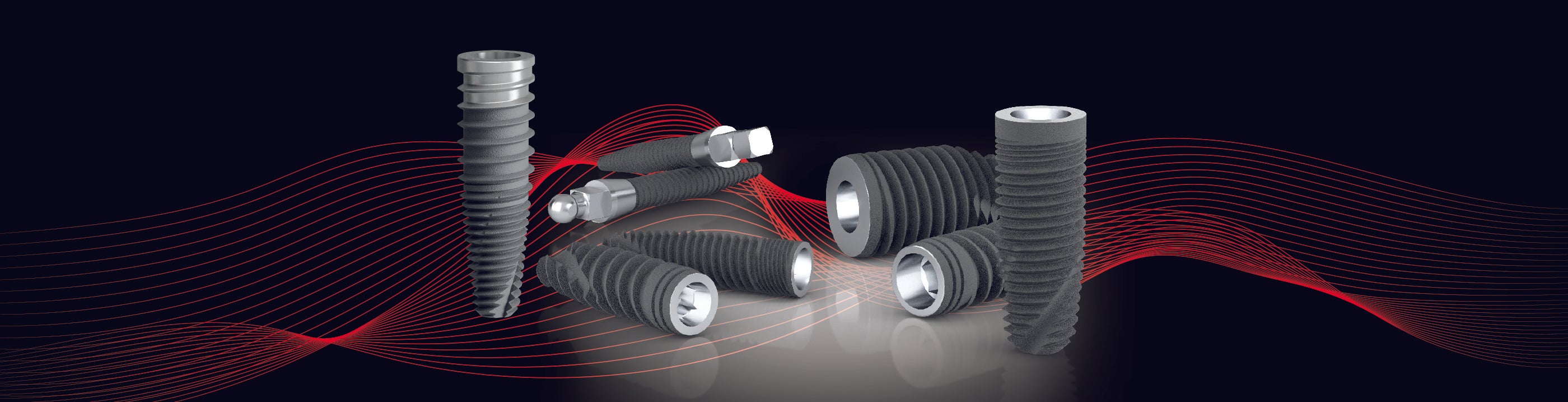

EV, 3P, WIDE and PTERYGO implants

CONEXA CONNECTION

This tapered connection prevents rotation and ensures high resistance to torsional loads thanks to the internal hexagon. In addition, the elimination of possible micro-movements through cold welding ensures the stability of hard and soft tissues, prosthetic components, and their surrounding tissues while respecting the biological width. The CONEXA is common to all lines and diameters, making it easier to choose transfers and abutments.
B&B DENTAL IMPLANT
CONEXA CONNECTION
6 UNIQUE DESIGNS

B&B DENTAL

CONEXA CONNECTION

Implants of lines 3P, EV, Wide, and Pterygo are equipped with a single connection called CONEXA to simplify the management of components and work in absolute safety.

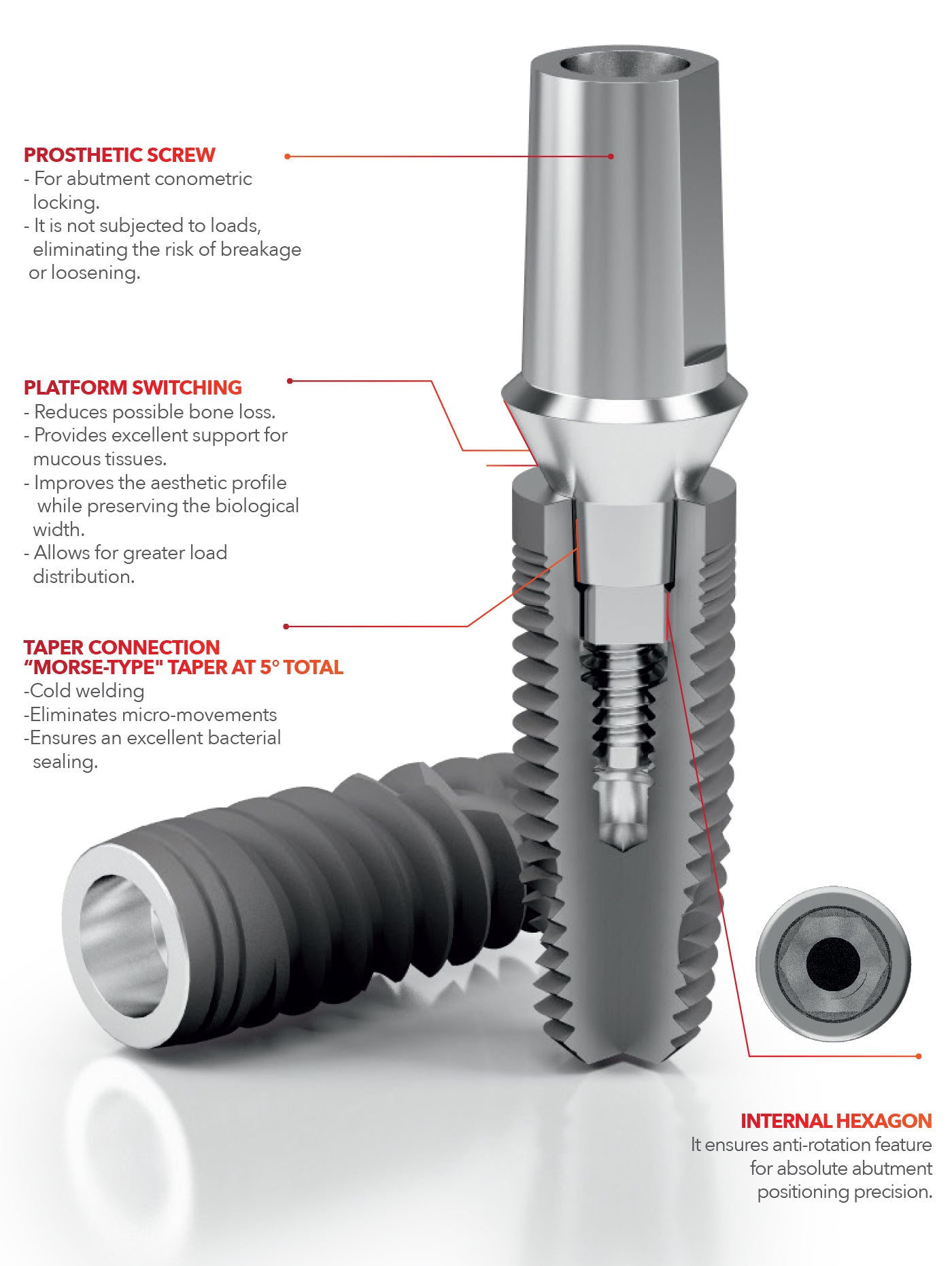

PROSTHETIC SCREW
- For abutment conometric locking
- It is not subjected to loads, eliminating the risk of breakage or loosening

PLATFORM SWITCHING
- Reduces possible bone loss
- Provides excellent support for mucous tissues
- Improves the aesthetic profile while preserving the biological  width
- Allows for greater load  distribution

“MORSE-TYPE" TAPER AT 5° TOTAL
- Cold welding
- Eliminates micro-movements
- Ensures an excellent bacterial sealing

INTERNAL HEXAGON
 -It ensures anti-rotation feature for absolute abutment positioning precision

B&B DENTAL

single connection

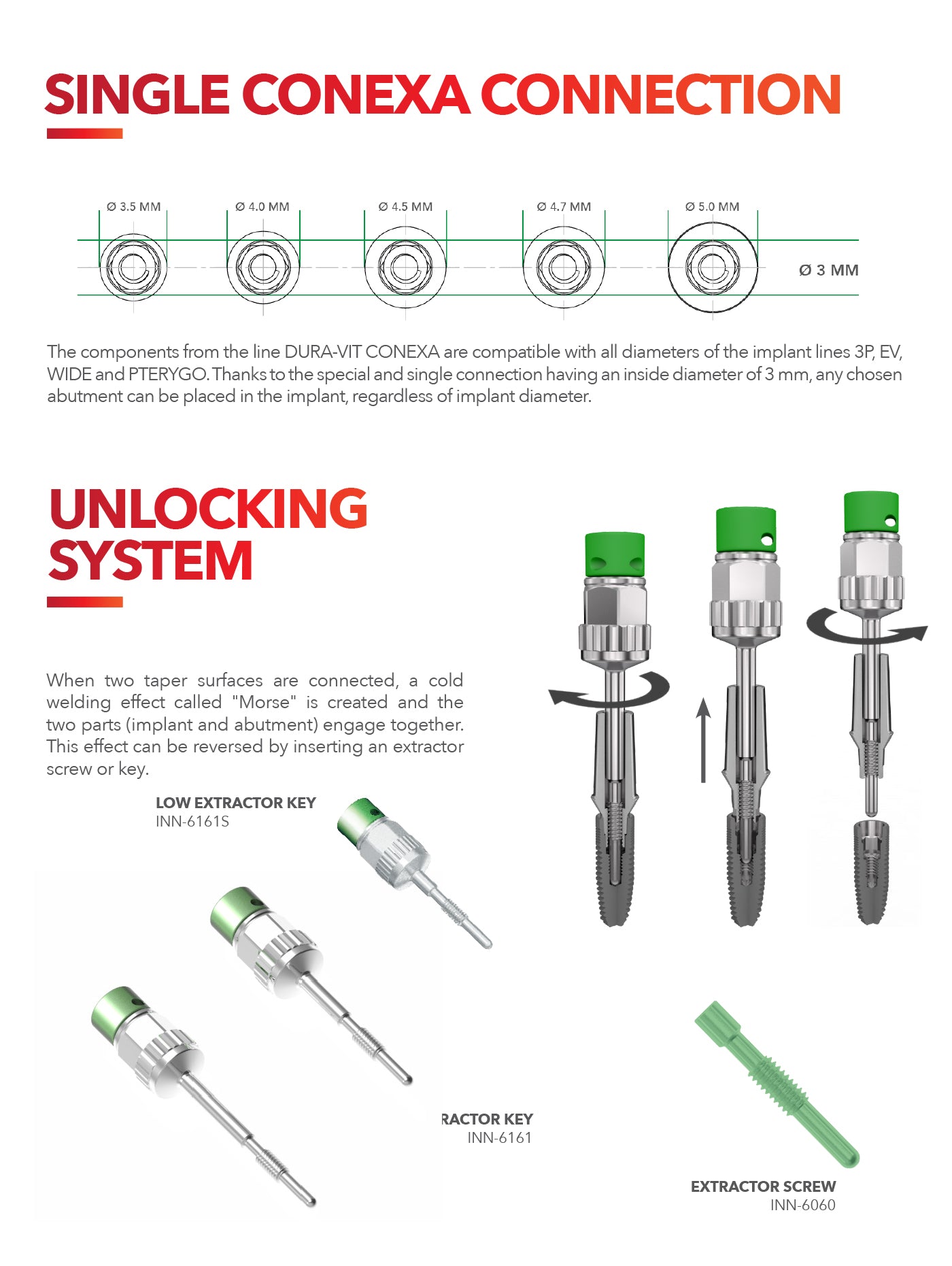

The components from the line DURA-VIT CONEXA are compatible with all diameters of the implant lines 3P, EV, WIDE and PTERYGO. Thanks to the special and single connection having an inside diameter of 3 mm, any chosen abutment can be placed in the implant, regardless of implant diameter.

UNLOCKING SYSTEM

When two taper surfaces are connected, a cold welding effect called "Morse" is created and the two parts (implant and abutment) engage together. This effect can be reversed by inserting an extractor screw or key.

B&B DENTAL

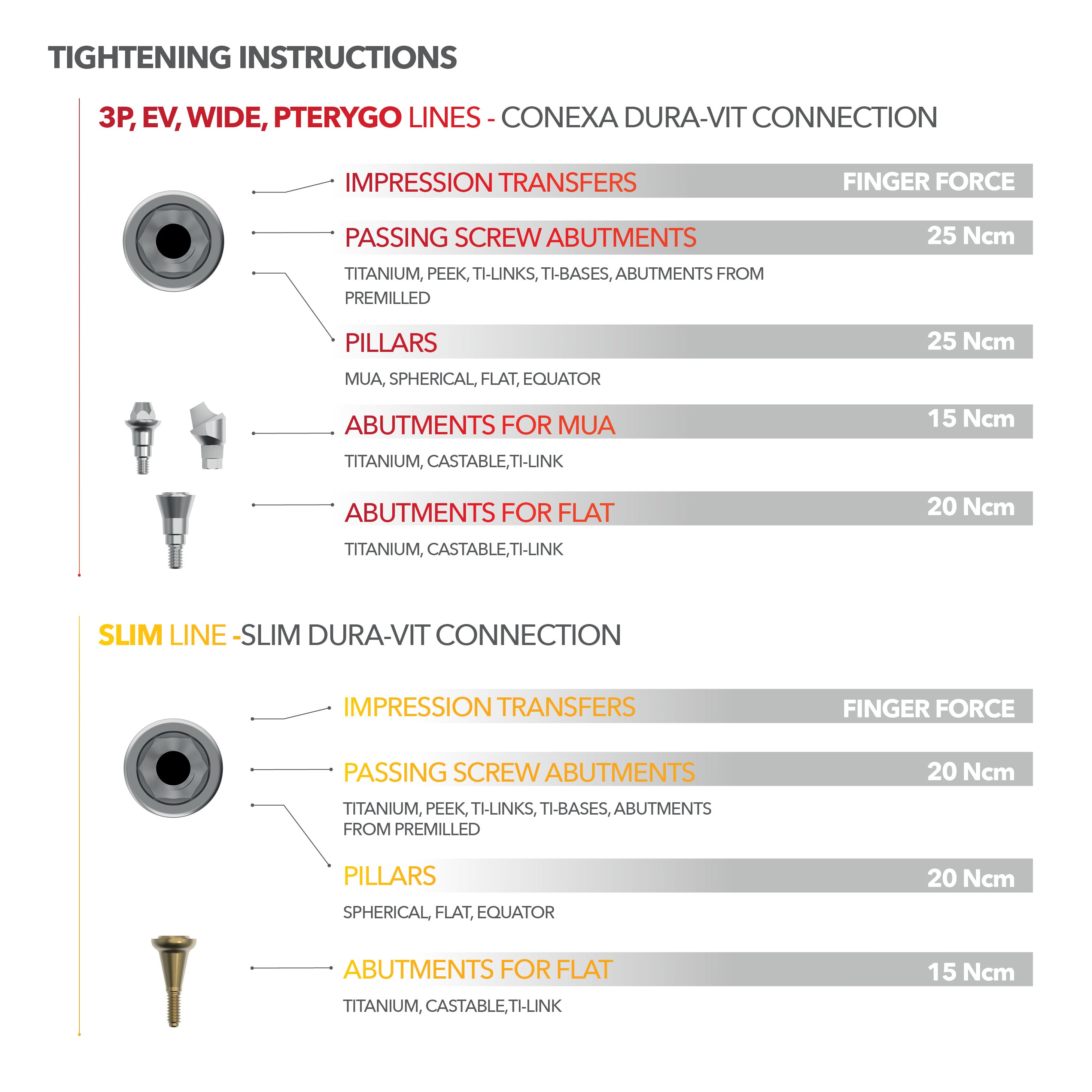

tightening instructions

3P, EV, WIDE, PTERYGO LINES - CONEXA DURA-VITCONNECTION

TRANSFERS AND HEALING COMPONENTS : Finger force
PASSING SCREW ABUTMENTS(titanium, peek, Ti-links, Ti-bases, abutments from premilled): 25 Ncm
PILLARS(MUA, spherical, flat, equator): 25 Ncm
ABUTMENTS FOR MUA(titanium,castable,Ti-link : 15 Ncm
ABUTMENTS FOR FLAT(titanium, castable,Ti-link): 20 Ncm

SLIM LINE -SLIM DURA-VIT CONNECTION

TRANSFERS AND HEALING COMPONENTS: Finger force
PASSING SCREW ABUTMENTS : 20 Ncm
(titanium, peek, Ti-links, Ti-bases, abutments from premilled)
PILLARS(spherical, flat, equator): 20 Ncm
ABUTMENTS FOR FLAT(titanium, castable,T i-link): 15 Ncm

B&B DENTAL

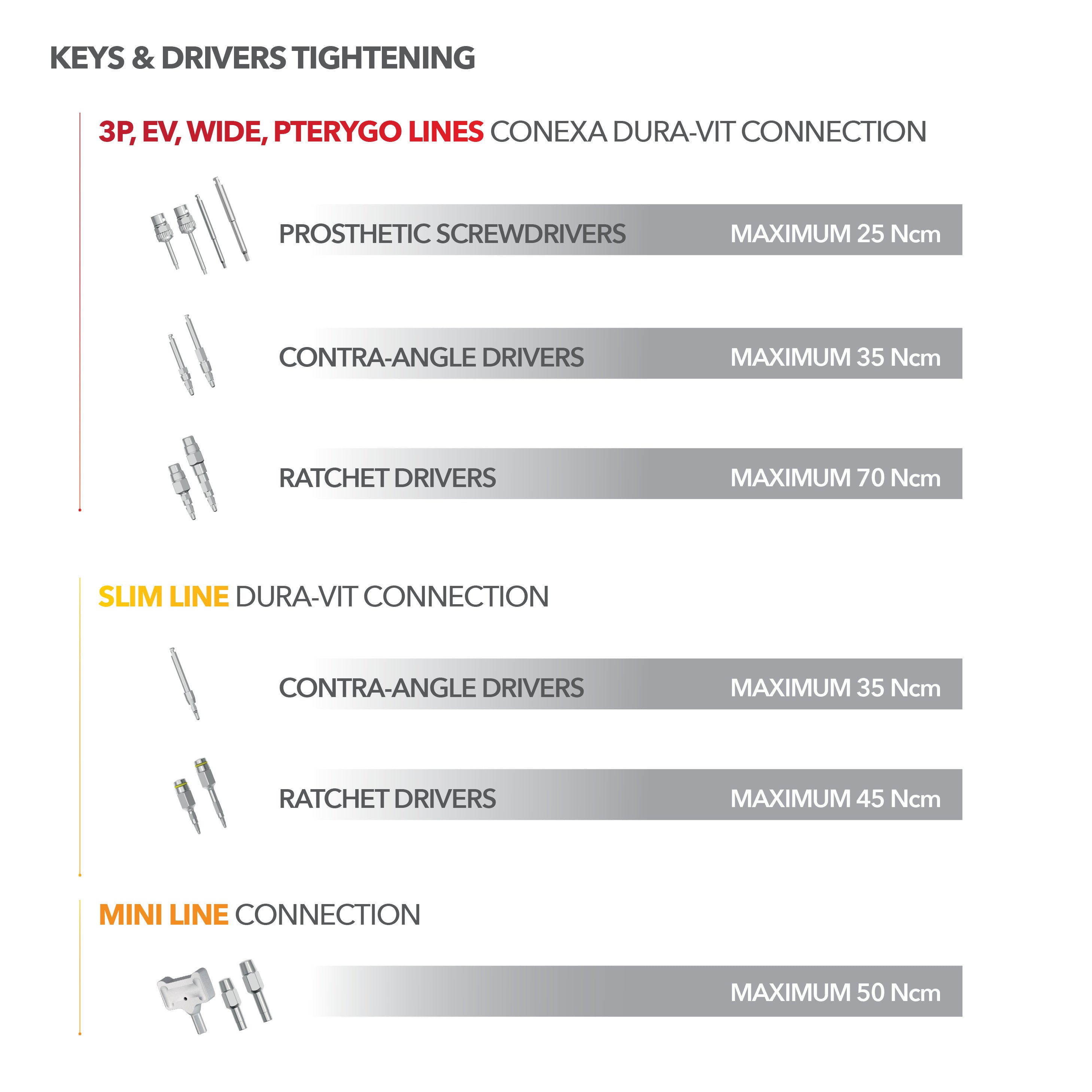

keys & drivers tightening

3P, EV, WIDE, PTERYGO LINES - CONEXA DURA-VITCONNECTION

PROSTHETIC SCREWDRIVERS: MAXIMUM 25 Ncm
CONTRA-ANGLE DRIVERS: MAXIMUM 35 Ncm
RATCHET DRIVERS: MAXIMUM 70 Ncm

SLIM LINE -SLIM DURA-VIT CONNECTION

CONTRA-ANGLE DRIVERS: MAXIMUM 35 Ncm
RATCHET AND MANUAL DRIVERS: MAXIMUM 45 Ncm

MINI LINE CONNECTION
RATCHET AND MANUAL DRIVERS: MAXIMUM 50Ncm
